Focus On Ptfe Tape Production Forever Since 2009
PTFE SEALING TAPE FOR THREADED CONNECTIONS DIN EN 751-3 DVGW
![](https://icdn.tradew.com/file/201412/1559213/jpg/7678448.jpg)
- *Tel
- *Title
- *Content

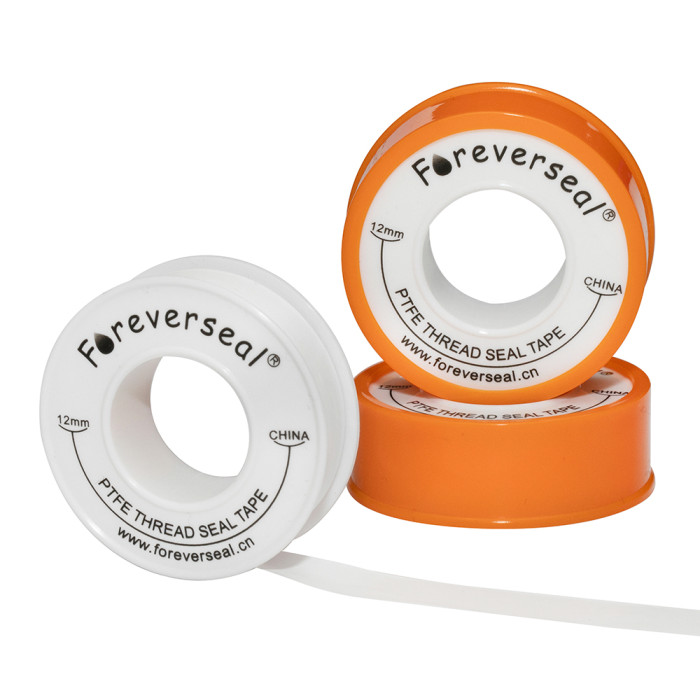

PTFE SEALING TAPE FOR THREADED CONNECTIONS DIN EN 751-3 DVGW
![PTFE SEALING TAPE FOR THREADED CONNECTIONS DIN EN 751-3 DVGW](https://icdn.tradew.com/file/201412/1559213/jpg/8083190.jpg?x-oss-process=image/resize,m_pad,l_600/quality,Q_90)
![PTFE SEALING TAPE FOR THREADED CONNECTIONS DIN EN 751-3 DVGW](https://icdn.tradew.com/file/201412/1559213/jpg/8083190.jpg?x-oss-process=image/resize,m_pad,l_100/quality,Q_90)
![PTFE SEALING TAPE FOR THREADED CONNECTIONS DIN EN 751-3 DVGW](https://icdn.tradew.com/file/201412/1559213/jpg/8083191.jpg?x-oss-process=image/resize,m_pad,l_100/quality,Q_90)
![PTFE SEALING TAPE FOR THREADED CONNECTIONS DIN EN 751-3 DVGW](https://icdn.tradew.com/file/201412/1559213/jpg/8083192.jpg?x-oss-process=image/resize,m_pad,l_100/quality,Q_90)
![PTFE SEALING TAPE FOR THREADED CONNECTIONS DIN EN 751-3 DVGW](https://icdn.tradew.com/file/201412/1559213/jpg/8083189.jpg?x-oss-process=image/resize,m_pad,l_100/quality,Q_90)
![PTFE SEALING TAPE FOR THREADED CONNECTIONS DIN EN 751-3 DVGW](https://icdn.tradew.com/file/201412/1559213/jpg/8083188.jpg?x-oss-process=image/resize,m_pad,l_100/quality,Q_90)
Categories | Teflon Tape For Gas |
---|---|
Brand | Foreverseal PTFE Tapes Manufacturer |
Model | TF12-10/0.6 |
Company Logo | Foreverseal |
Busniess type | PTFE TAPE Manufacturer |
Brand | OEM/ODM |
Specification | 12mmx0.1mmx10m |
Density | 0.60g/cm3--1.80g/cm3 |
Color | White |
Certificate | DVGW,ISO9001,CE,UL,RoHS,WRAS,ACS |
Composition | Min. 99% virgin PTFE, Max. 1% pigment |
Temperature Range | -450F(-268C) to +500F ( 260C) |
Tensile Strength | 15N/mm2 |
Elongation | Min 50% |
Pressure Resistance | up to 10,000PSI |
Chemical Resistance | PH:0-14 |
FOB port | Shanghai/Ningbo |
Terms of Payment | L/C, T/T |
Update Time | Sep 8,2024 |
High density PTFE TAPE for gas pipe are used for high pressure systems,for critic and special purpose. According to MIL-T27730A, UL.
High density PTFE TAPE is thicker and heavier tape. it's easy to apply and creates a more effective seal with less tape,and no need for pipe dope. It's used on all threads made by galvanized steel,iron,brass copper,aluminum,stainless steel,polyethylene,polypropylene,pvc,cpvc,abs,fiberglass and more.
Thickness | 0.1mm | ||
Width | 12mm(1/2") | ||
Density | 0.6g/cm3 - 1.80g/cm3 | ||
Composition | 100% virgin PTFE | ||
Pressure Rating | up to 3,000PSI | ||
Temp.Range | 400F to +500F (-240C to 260C) | ||
Tensile Strength | 8 N/mm2 | ||
Elongation | Min 25% | ||
Storage | Unlimited shelf life(less than 70F )/50% relative humidity out of direct sunlight | ||
Flammability | Non-flammable |
--China's two largest suppliers
![](https://icdn.tradew.com/file/201412/1559213/jpg/8032265.jpg?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201412/1559213/jpg/8032280.jpg?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201412/1559213/jpg/8032266.jpg?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201412/1559213/jpg/8032343.jpg?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201412/1559213/jpg/8032344.jpg?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201412/1559213/jpg/8032345.jpg?x-oss-process=image/quality,Q_90)
AUTO INJECTION MACHINES
At end of 2019, we have invested 3 million RMB to 9 auto Injection molding machines, it's saved 50% labor cost and improved the spool/cover quality. It's worthy as we are always focus to the quality
![](https://icdn.tradew.com/file/201412/1559213/jpg/8032257.jpg?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201412/1559213/jpg/8032258.jpg?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201412/1559213/jpg/8032292.jpg?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201412/1559213/jpg/8032259.jpg?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201412/1559213/jpg/8032263.jpg?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201412/1559213/jpg/8032312.jpg?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201412/1559213/jpg/8032311.jpg?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201412/1559213/jpg/8032314.jpg?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201412/1559213/jpg/8032315.jpg?x-oss-process=image/quality,Q_90)
Since 2012, with significant investment in both Research&Development for all production line, we have already introduced automatic machines to improve the work efficiency and product quality.
From mixing, calendering, stretching, slitting, rewinding and packing, our well-equipped facilities and professional quality control through all stages of production enable us to guarantee total customers’ satisfaction.
