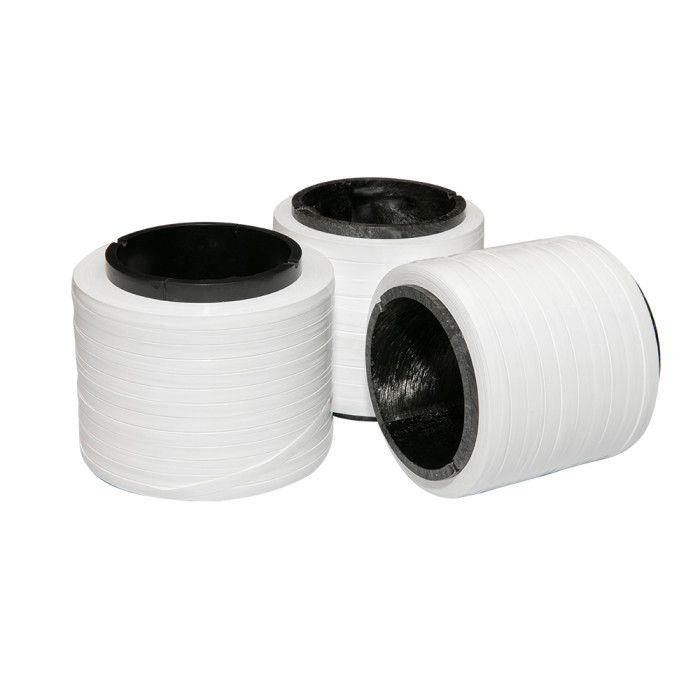

ptfe cable wrapping tape for stable phase low loss cable microwave coaxial cable
Detail Information
FEATURES
Low density ePTFE FILM
ptfe cable wrapping tape e produce micropore through stretch and under a certain specific and tightly controlled conditions to achieve low dielectric constant and high tensile strength.
It's light、soft、flame retardant and the low dielectric constant makes low density PTFE tapes for high frequency microwave coaxial cable applications in data transfer,militarty and medical field.
l Technical Data for low density ePTFE FILM:
THICKNESS | 0.051mm | 0.076mm | 0.102mm | 0.127mm | 0.152mm | 0.203mm | 0.254mm | |
|
TOLERANCE
|
+/-0.005 | +/-0.005 | +/-0.006 |
+/-0.0076
|
+/-0.0076 |
+/-0.01
|
+/-0.01
|
|
WIDTH | 4mm - 200mm | |||||||
DENSITY | 0.50g/cm3 - 0.90g/cm3 | |||||||
|
TENSILE STRENGTH (minimum)
|
12MPa |
|||||||
|
ELONGATION (minimum)
|
50% |
|||||||
Production Center/aboutus.htm
PTFE material record
Calender control
ePTFE FILM cutting
Main work shop
Where do we use our ePTFE FILM
Medical equipment
Robot
Military/defense
Radar
